The Earth and Geographic Coordinates for Beginners

In this blog, we will explore the fundamental characteristics of the Earth and the geographic coordinate system, which are essential for navigation. By understanding these concepts, you will gain insight into how we define positions on our planet.

Introduction to the Earth

The Earth, the third planet from the sun, is a remarkable celestial body characterized by its unique shape and movements. Understanding its properties is foundational for navigation and exploring our world.

The Shape of the Earth

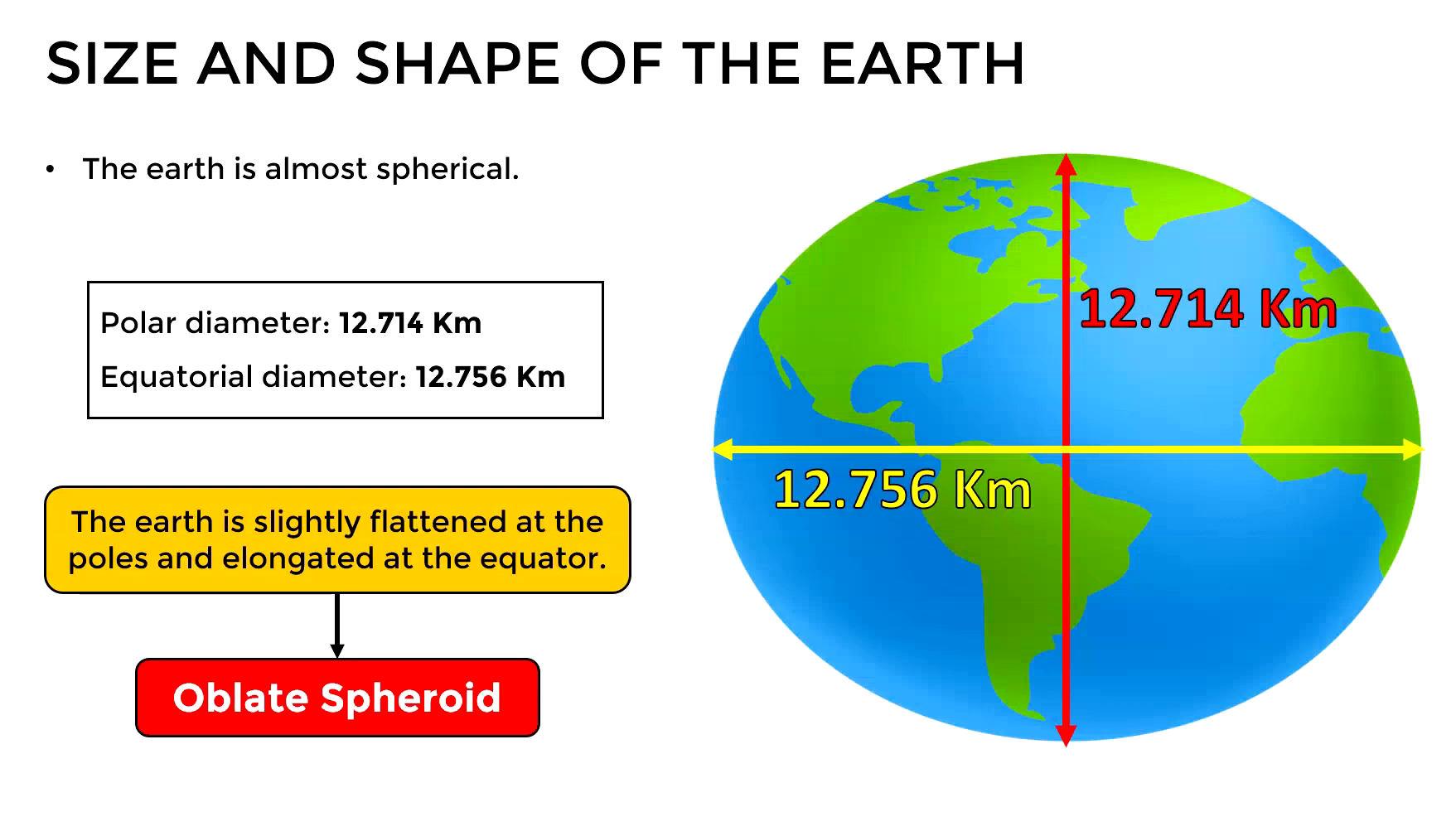

The Earth is almost spherical but slightly flattened at the poles and elongated at the equator, forming an oblate spheroid. This shape is a result of the centrifugal force generated by its rotation.

The polar diameter measures approximately 12,714 kilometers, while the equatorial diameter is about 12,756 kilometers. This difference in diameter is crucial for understanding how the Earth interacts with various forces in space.

Rotational and Translational Movements

The Earth rotates on its axis, completing a full revolution approximately every 24 hours. This rotation defines the cardinal directions and plays a significant role in our experience of day and night.

In addition to rotation, the Earth also translates around the sun, taking about 365 days to complete its elliptical orbit. This movement is essential for the changing seasons and various climatic phenomena.

Importantly, the Earth’s axis is tilted at about 23.5 degrees relative to its orbital plane, influencing seasonal changes and solar radiation received at different times of the year.

Cardinal Points Explained

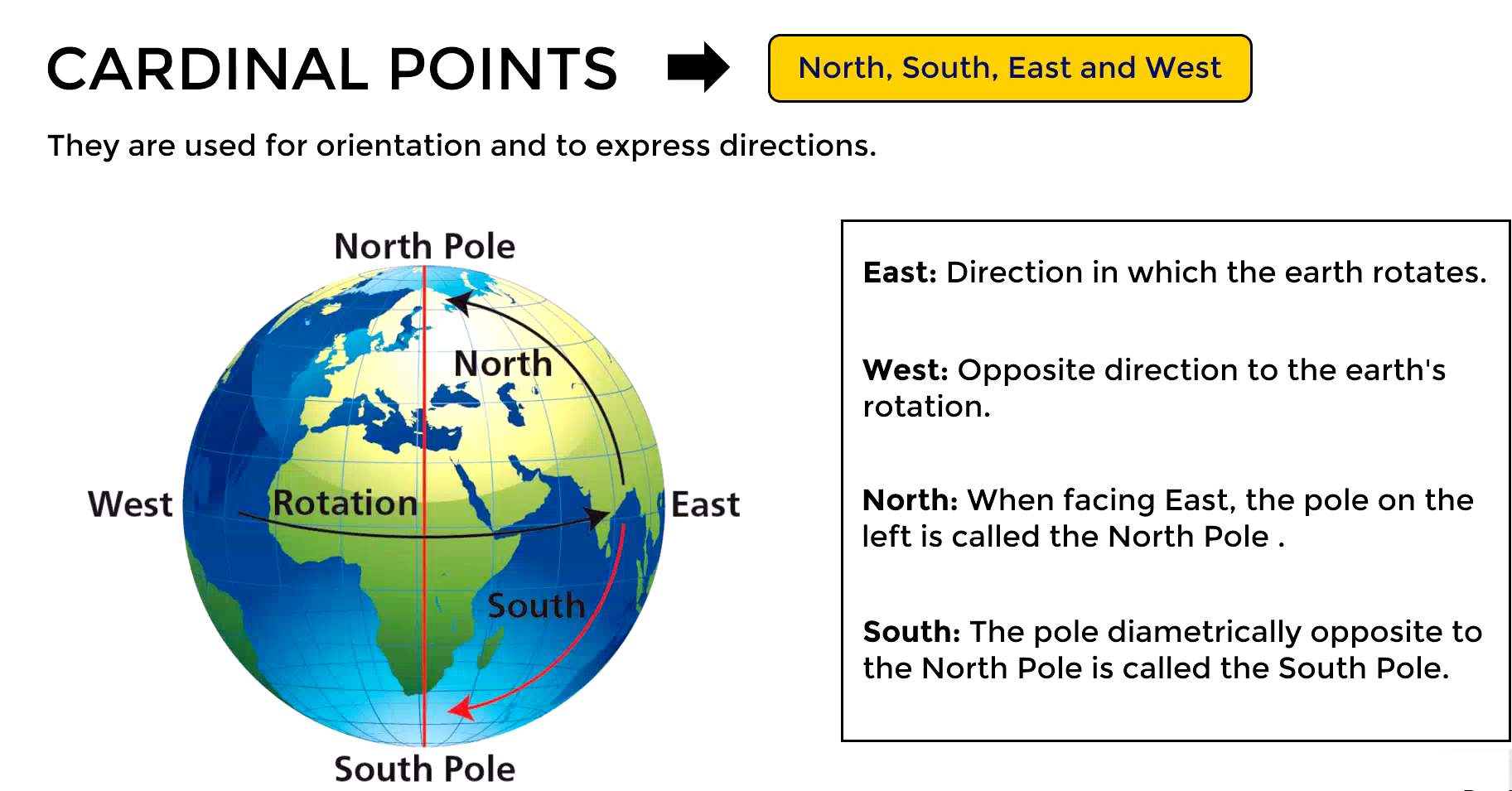

Cardinal points—North, South, East, and West—are fundamental for orientation. East is the direction of the Earth’s rotation, while West is the opposite direction. North and South indicate the poles, serving as primary reference points in navigation.

Intermediate directions, known as quadrantal points, include northeast, southeast, southwest, and northwest. These points allow for more precise navigation and orientation.

Using Cardinal Points

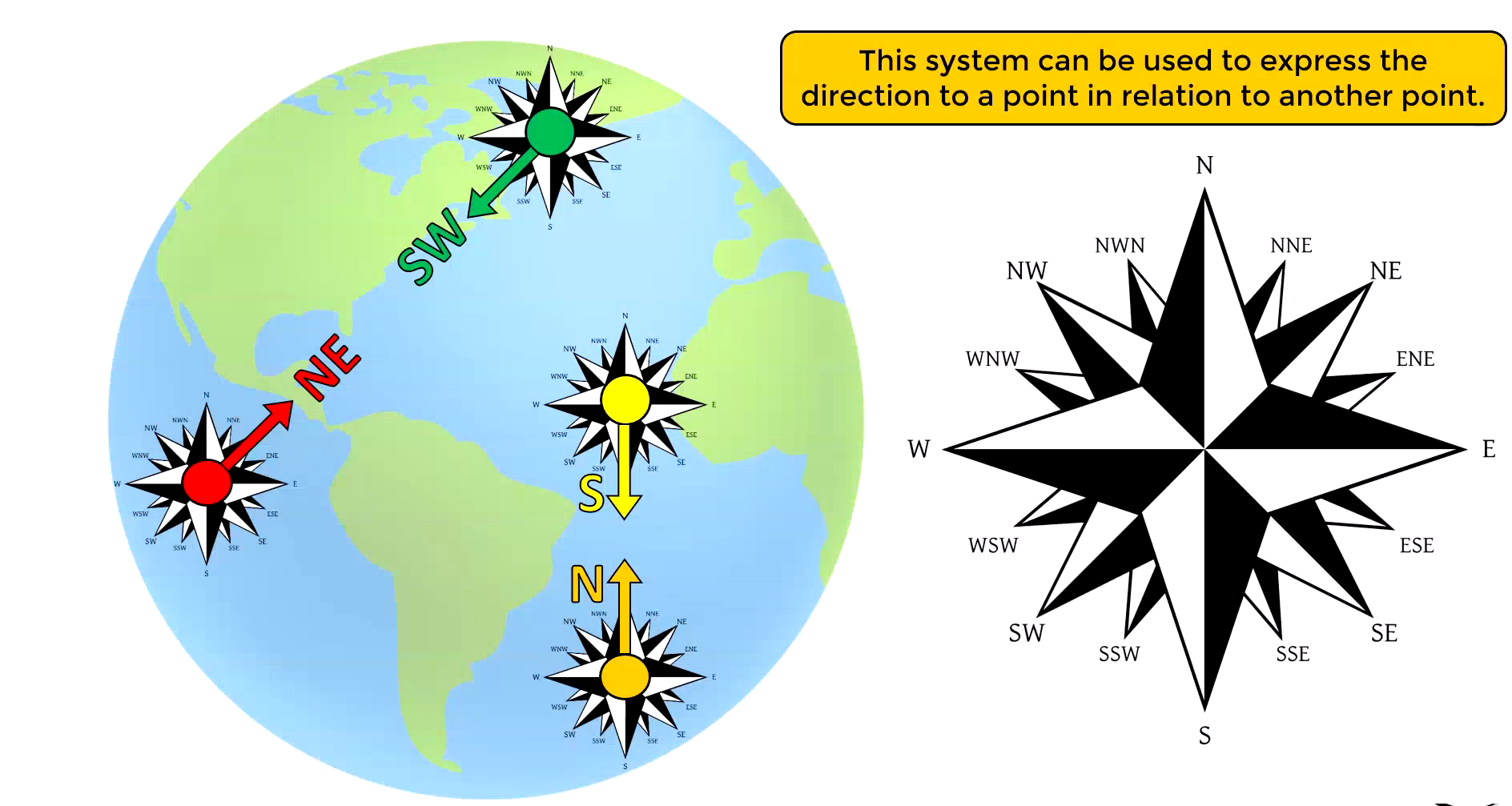

Cardinal points are used to express relative directions between locations. For instance, if one point is northeast of another, the opposite direction will be southwest.

Understanding Position Reference Systems

To express exact positions on Earth, we require a position reference system. The Cartesian coordinate system uses two axes to define locations, but it is limited to two-dimensional surfaces.

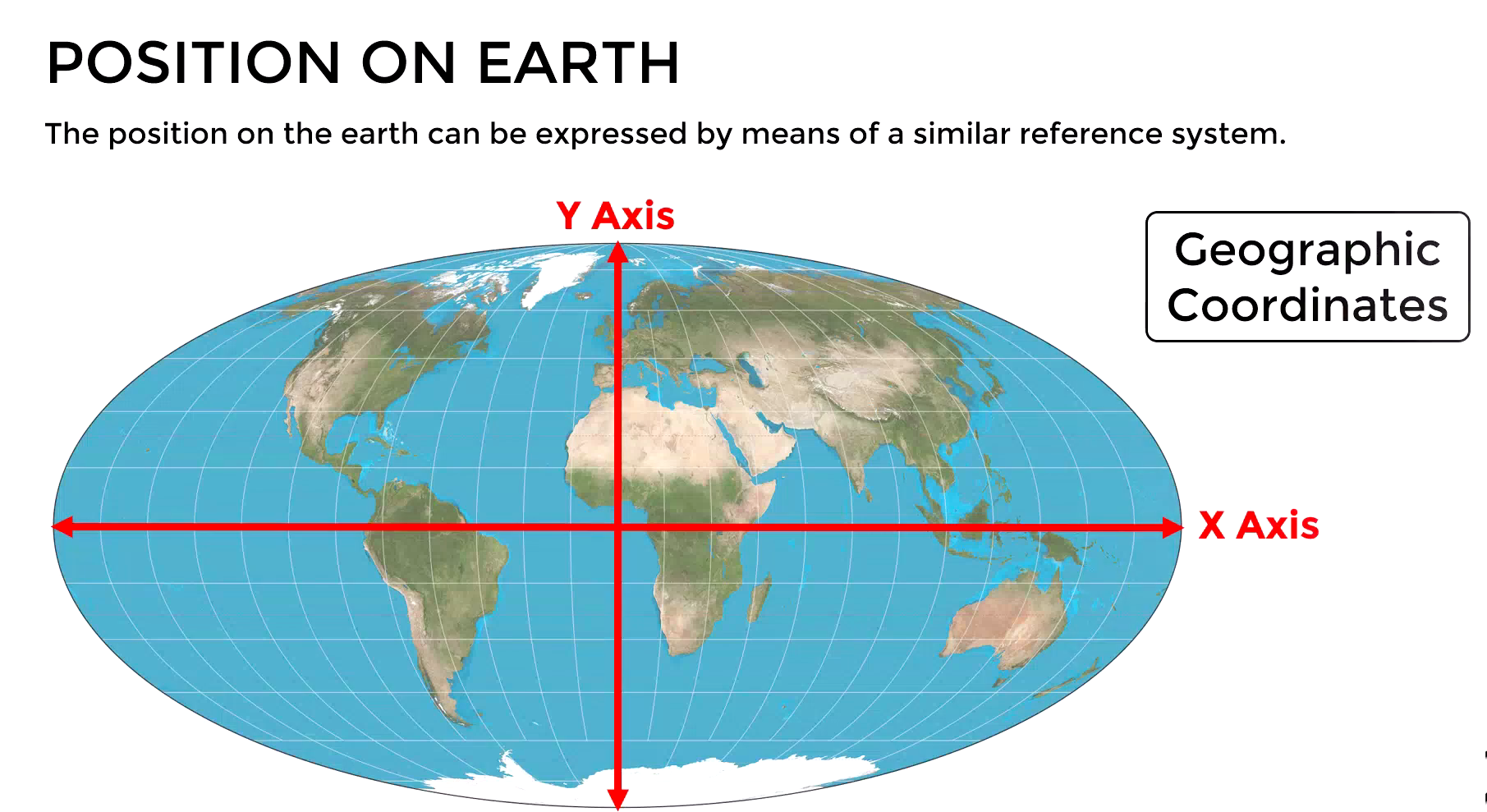

In contrast, the geographic coordinate system is designed for our three-dimensional Earth. It employs latitude and longitude to pinpoint locations, mirroring the x and y-axis concept in Cartesian coordinates.

The Geographic Coordinate System

The geographic coordinate system utilizes two main reference axes: the equator and the Greenwich meridian. These axes help define latitude and longitude, representing angular distances from these reference lines.

Latitude measures how far north or south a point is from the equator, while longitude measures how far east or west a point is from the prime meridian. This system allows for precise navigation across the globe.

Great Circles and Small Circles

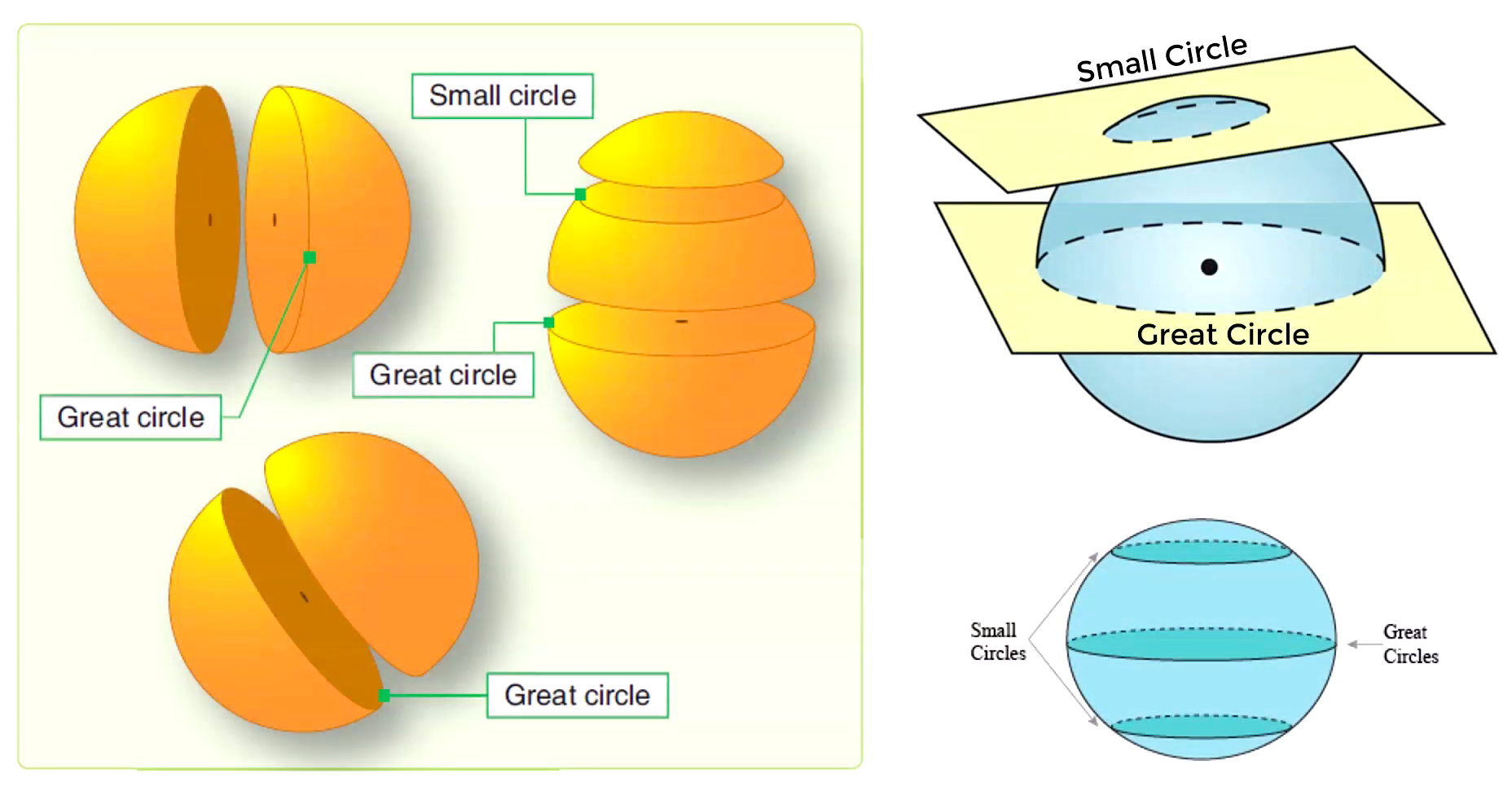

Understanding the concepts of great circles and small circles is essential in geography. A great circle divides the Earth into two equal halves, while a small circle does not pass through the center, resulting in unequal segments.

Defining Latitude and Longitude

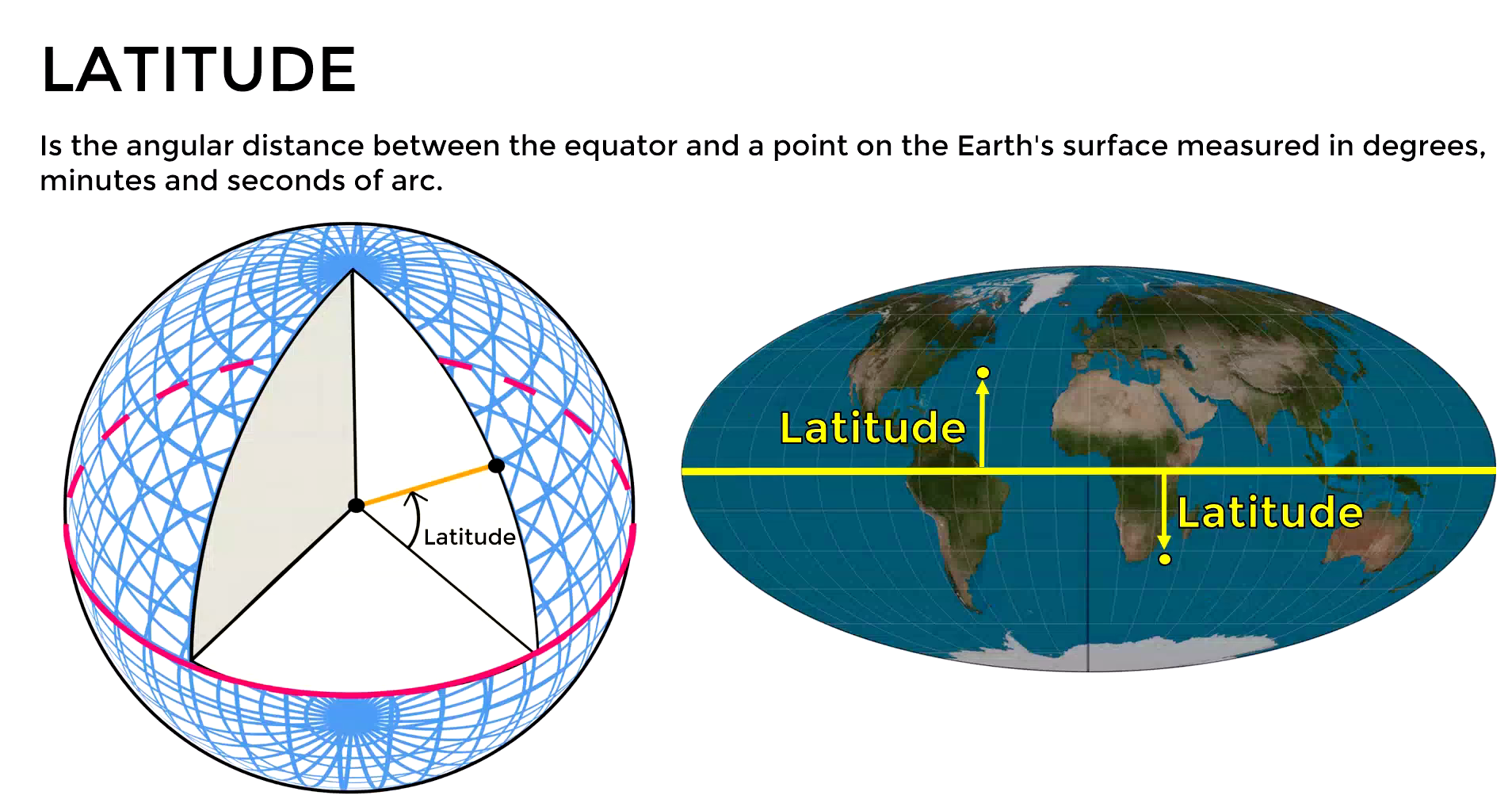

Latitude is defined as the angular distance from the equator, ranging from 0 degrees at the equator to 90 degrees at the poles. It is measured in degrees, minutes, and seconds.

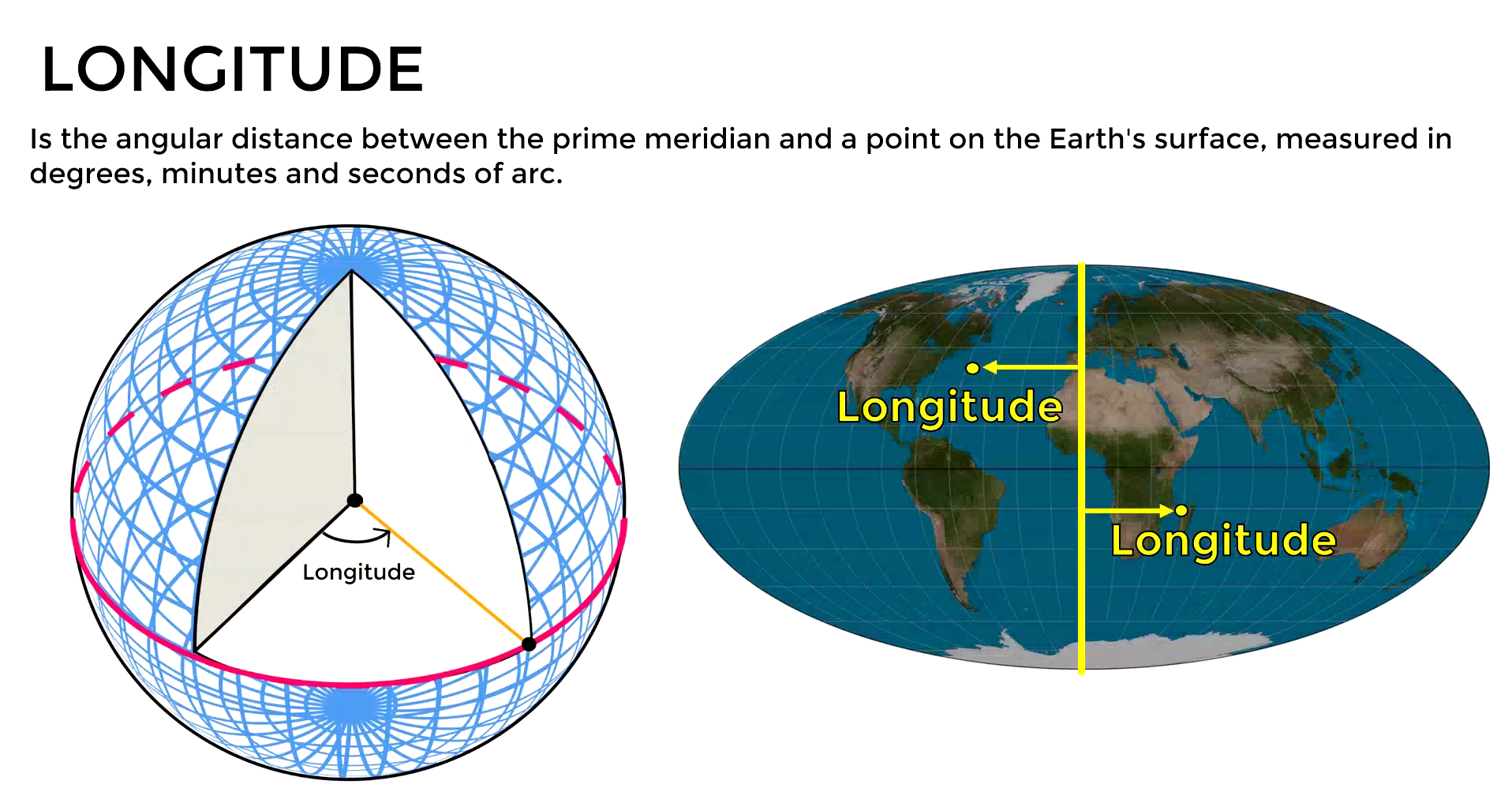

Longitude, on the other hand, measures the angular distance from the prime meridian, ranging from 0 degrees to 180 degrees east or west. This system allows for global positioning and navigation.

Using Degrees, Minutes, and Seconds

To enhance accuracy, the geographic coordinate system employs a sexagesimal system. Each degree can be divided into 60 minutes, and each minute can be further divided into 60 seconds, allowing for precise location determination.

Practical Applications of Geographic Coordinates

To determine coordinates on a map, one must first identify the latitude and then the longitude. For example, a point located at 40 degrees north and 100 degrees west can be expressed in geographic coordinates.

With this system, it becomes possible to accurately locate any point on Earth, facilitating navigation, mapping, and geographic information systems.

World Geodetic System 1984

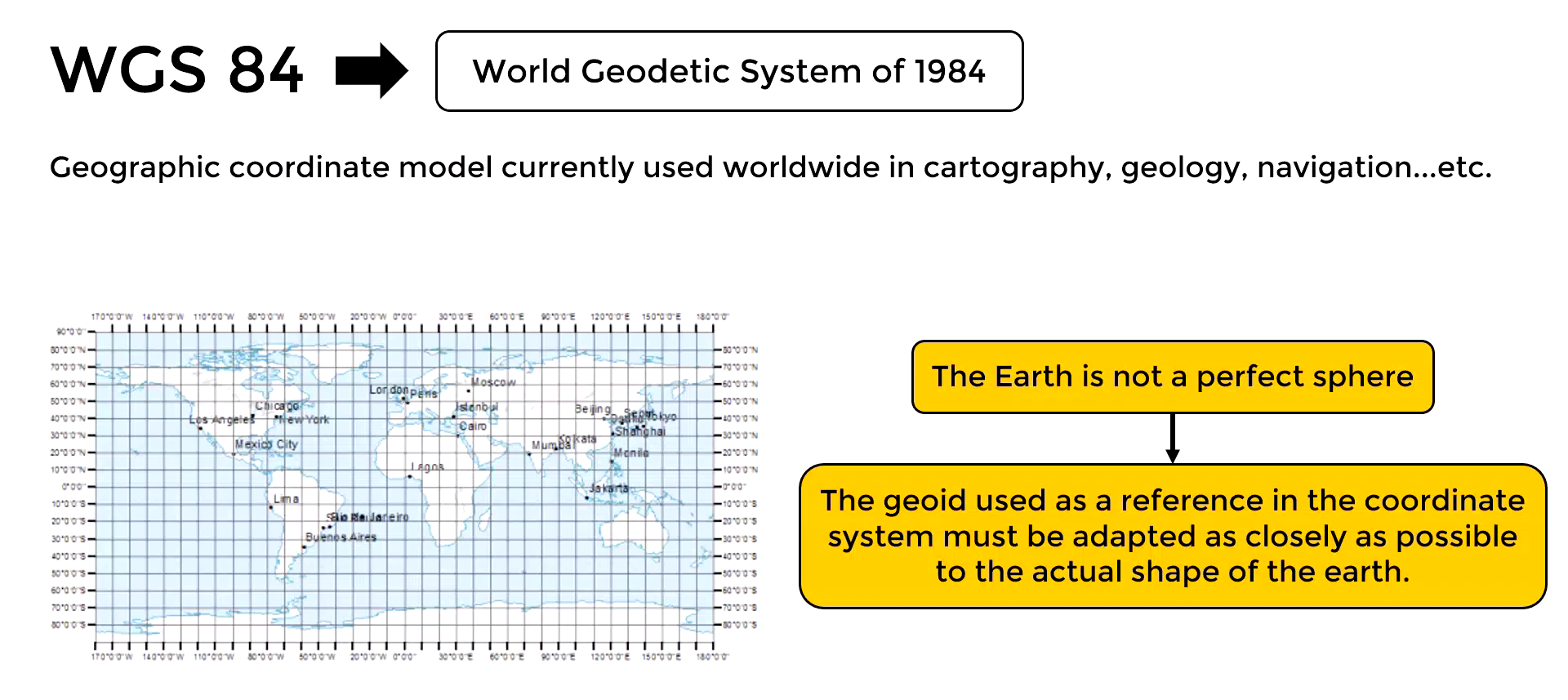

The current geographic coordinate system is based on the World Geodetic System of 1984 (WGS84), which is the standard for navigation and mapping. This model accounts for the Earth’s irregular shape, providing accurate positioning within two centimeters.

WGS84 is widely used in Global Navigation Satellite Systems (GNSS), including GPS, ensuring that users can determine their precise location anywhere on the planet.

FAQ

Here are some frequently asked questions (FAQs) about geographic coordinates:

What are geographic coordinates?

   – Geographic coordinates are a system that uses latitude and longitude to define the precise location of a point on the Earth’s surface. Latitude measures north-south position, while longitude measures east-west position.

What is the difference between latitude and longitude?

   – Latitude lines run horizontally and measure the distance north or south of the Equator, ranging from -90° to +90°. Longitude lines run vertically from the North to the South Pole and measure the distance east or west of the Prime Meridian, ranging from -180° to +180°.

What is the format of geographic coordinates?

   – Geographic coordinates can be expressed in three formats: Decimal Degrees (e.g., 37.7749° N, 122.4194° W), Degrees and Decimal Minutes (e.g., 37° 46.494′ N, 122° 25.164′ W), and Degrees, Minutes, and Seconds (e.g., 37° 46′ 29.64″ N, 122° 25′ 9.84″ W).

How do I convert geographic coordinates between different formats?

   – Converting between formats involves simple mathematical calculations: Decimal Degrees to Degrees, Minutes, and Seconds (DMS) involves separating whole degrees from the decimal portion and converting it to minutes and seconds. Many online tools and GIS software can perform these conversions automatically.

What is the significance of the Prime Meridian and the Equator in geographic coordinates?

   – The Equator is the zero-degree latitude line that divides the Earth into the Northern and Southern Hemispheres. The Prime Meridian is the zero-degree longitude line that runs through Greenwich, England, dividing the Earth into the Eastern and Western Hemispheres.

What is the difference between geographic coordinates and projected coordinates?

   – Geographic coordinates are based on a spherical model of the Earth, using a three-dimensional system (latitude and longitude). Projected coordinates, on the other hand, use a flat, two-dimensional plane, applying a map projection to convert geographic coordinates into linear measurements (e.g., meters, feet).

How accurate are geographic coordinates?

   – The accuracy of geographic coordinates depends on the precision of the measurement and the equipment used. High-precision GPS devices can provide sub-meter accuracy, while standard consumer GPS devices may have accuracy within a few meters.

What is the World Geodetic System 1984 (WGS84)?

   – WGS84 is a global coordinate system used for GPS and is a standard for defining latitude and longitude coordinates. It provides a consistent framework for georeferencing points on Earth.

What is a geographic coordinate system (GCS)?

   – A Geographic Coordinate System (GCS) is a coordinate system that uses a three-dimensional spherical surface to define locations on the Earth. It includes a datum, an angular unit of measure, and a prime meridian.

How do I find the geographic coordinates of a location?

    – Geographic coordinates of a location can be found using GPS devices, online mapping services (e.g., Google Maps), GIS software, or various mobile apps that provide latitude and longitude information for any given point.

Why do some geographic coordinates have a negative value?

    – Negative values in geographic coordinates indicate positions south of the Equator for latitude (negative latitude) and west of the Prime Meridian for longitude (negative longitude).

What is geocoding, and how is it related to geographic coordinates?

    – Geocoding is the process of converting addresses or place names into geographic coordinates (latitude and longitude). It is commonly used in GIS applications to map locations.

How do I transform geographic coordinates from one datum to another?

    – Transforming coordinates from one datum to another (e.g., from WGS84 to NAD83) requires a datum transformation process, which can be done using GIS software tools or online conversion services that account for the differences in the Earth’s shape and orientation.
