Understanding Map Projections: Distortions and Uses

Map projections are essential tools for representing the Earth’s surface on flat media, but they come with inherent distortions. This blog explores various types of map projections, their characteristics, and their best applications, providing insights into how geography is visualized.

Introduction to Map Projections

Map projections are essential tools for visualizing the Earth’s surface on flat media. However, they come with significant challenges due to the Earth’s near-spherical shape. The goal of a map projection is to represent this complex surface as accurately as possible, while acknowledging that compromises must be made. Understanding these compromises is crucial for interpreting maps effectively.

The Challenge of Representing the Earth

The Earth is a three-dimensional object, and flattening it onto a two-dimensional surface leads to distortions in shape, area, and distance. This challenge is akin to peeling an orange and trying to lay the peel flat without tearing it. Each map projection presents a different solution to this problem, prioritizing certain aspects over others to achieve a usable representation.

Types of Map Projections: Overview

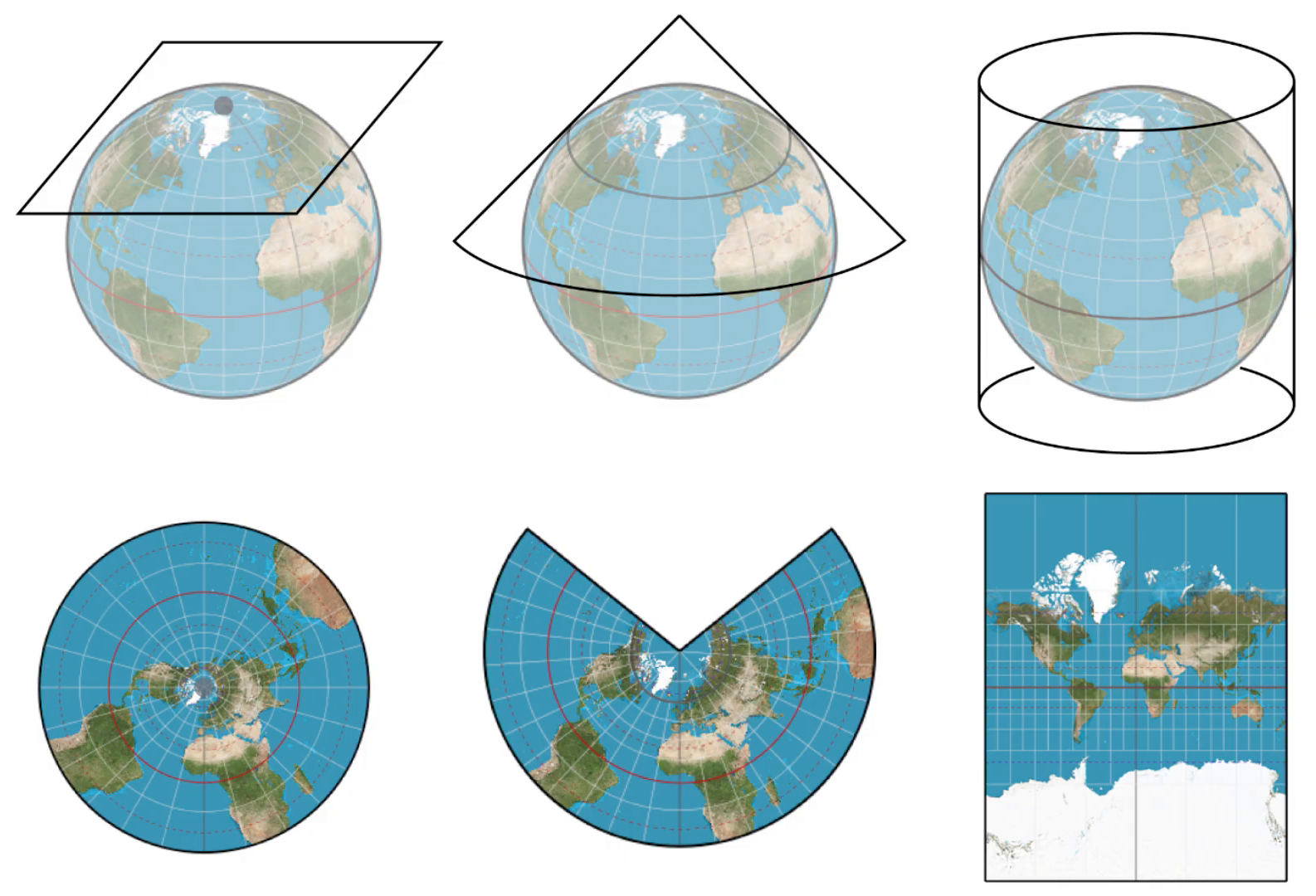

Map projections can generally be categorized into three main types: cylindrical, conical, and planar. Each type has its own methods of projection and specific characteristics that make it suitable for different applications.

Cylindrical Projections

Cylindrical projections involve wrapping a piece of paper around the globe, projecting the Earth’s features onto the paper. This method preserves angles but distorts size, particularly near the poles. The Mercator projection is the most famous cylindrical projection, widely used for navigation.

Conical Projections

Conical projections are created by placing a cone-shaped piece of paper over the globe. This type of projection is particularly useful for regions that extend primarily east to west. The Lambert conformal conic projection is a prime example, commonly used in aviation for its accuracy in representing great circles.

Planar Projections

Planar projections, or azimuthal projections, depict the Earth from a specific point, often used for mapping polar regions. These projections can preserve distance from the center point, making them useful for certain navigational purposes.

Conformal Projections: Preserving Shape

Conformal projections maintain the accurate shape of geographic features, but this comes at the cost of area distortion. The Mercator projection is a prime example of this type, making it popular for maritime navigation.

The Mercator Projection: A Closer Look

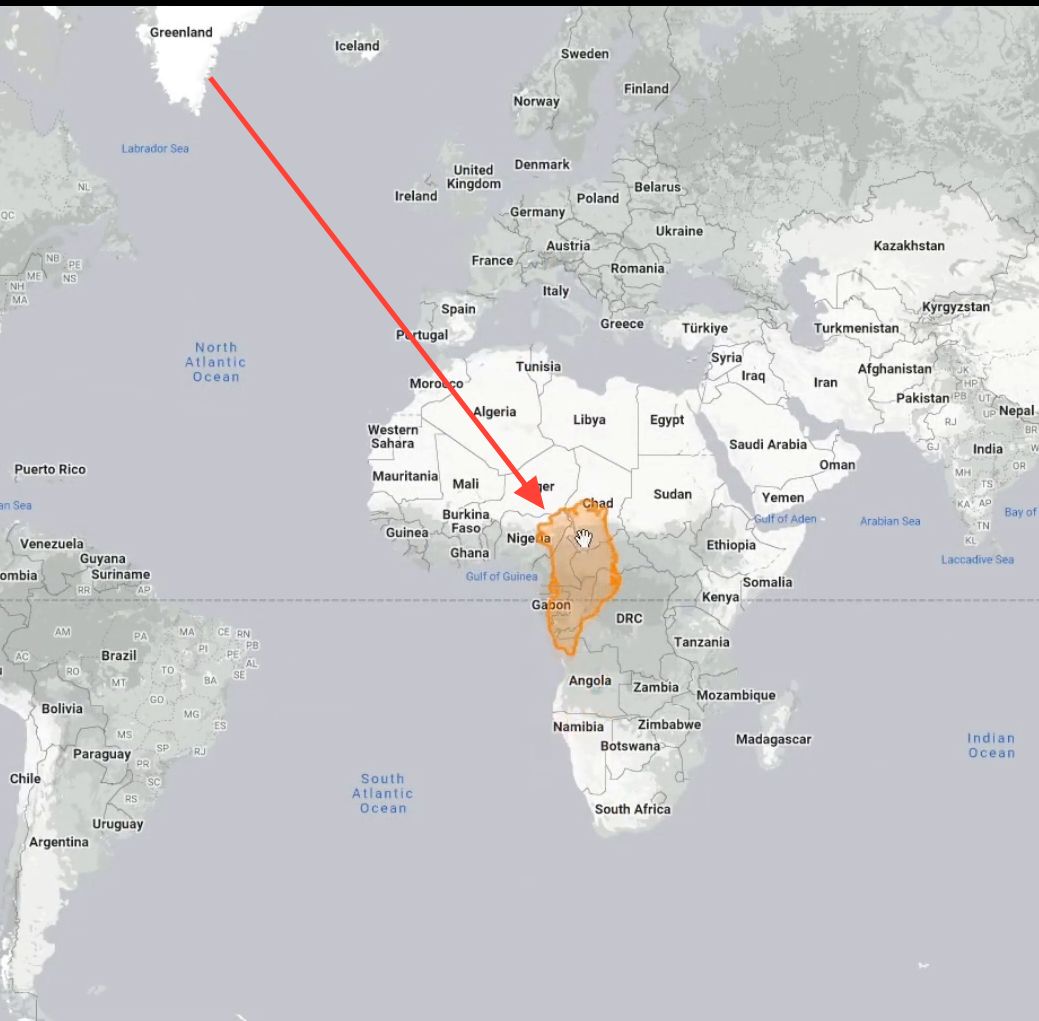

Developed in the 1500s, the Mercator projection was designed for navigators. It features straight lines of latitude and longitude, making it easy to plot courses. However, this projection significantly enlarges areas far from the equator, leading to misconceptions about the size of polar regions.

Despite its limitations, the Mercator projection remains a standard for many mapping applications, particularly for local navigation. The Universal Transverse Mercator (UTM) is a variation that focuses on smaller areas, providing a more accurate representation for specific regions.

Other Conformal Projections

• Lambert’s Conformal Conic Projection: Used for aviation navigation, aligning closely with great circles.
• Atoms Hemisphere in a Square: A unique projection that visually presents a hemisphere within a square, though it lacks practical applications.

Equal Area Projections: Preserving Size

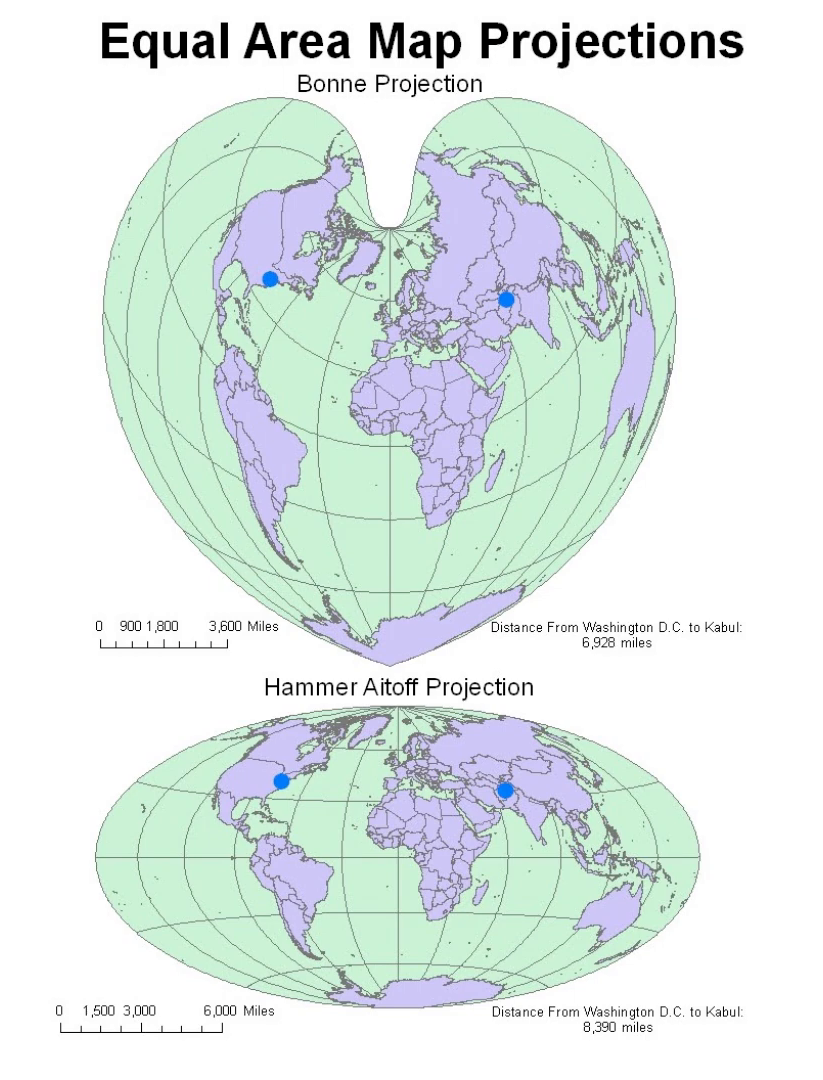

Equal area projections accurately represent the size of geographic features but distort their shapes. This type of projection is essential for thematic maps where area comparison is crucial.

Examples of Equal Area Projections

• Colignon Projection: Useful in astrophysics, this projection distorts shapes significantly.
• Sinusoidal Projection: Offers a more familiar map appearance while preserving area.
• Gall-Peters Projection: Known as the anti-Mercator, it stretches tropical areas while preserving size.

Equidistant Projections: Preserving Distance

Equidistant projections maintain accurate distances from the center point to all other points, making them useful for specific applications, such as mapping small countries.

Examples of Equidistant Projections

• Equidistant Conic Projection: Best for east-west oriented regions.
• Equirectangular Projection: Every rectangle on the map is equal-sized, though it lacks practicality.

Compromised Projections: Aesthetic Balance

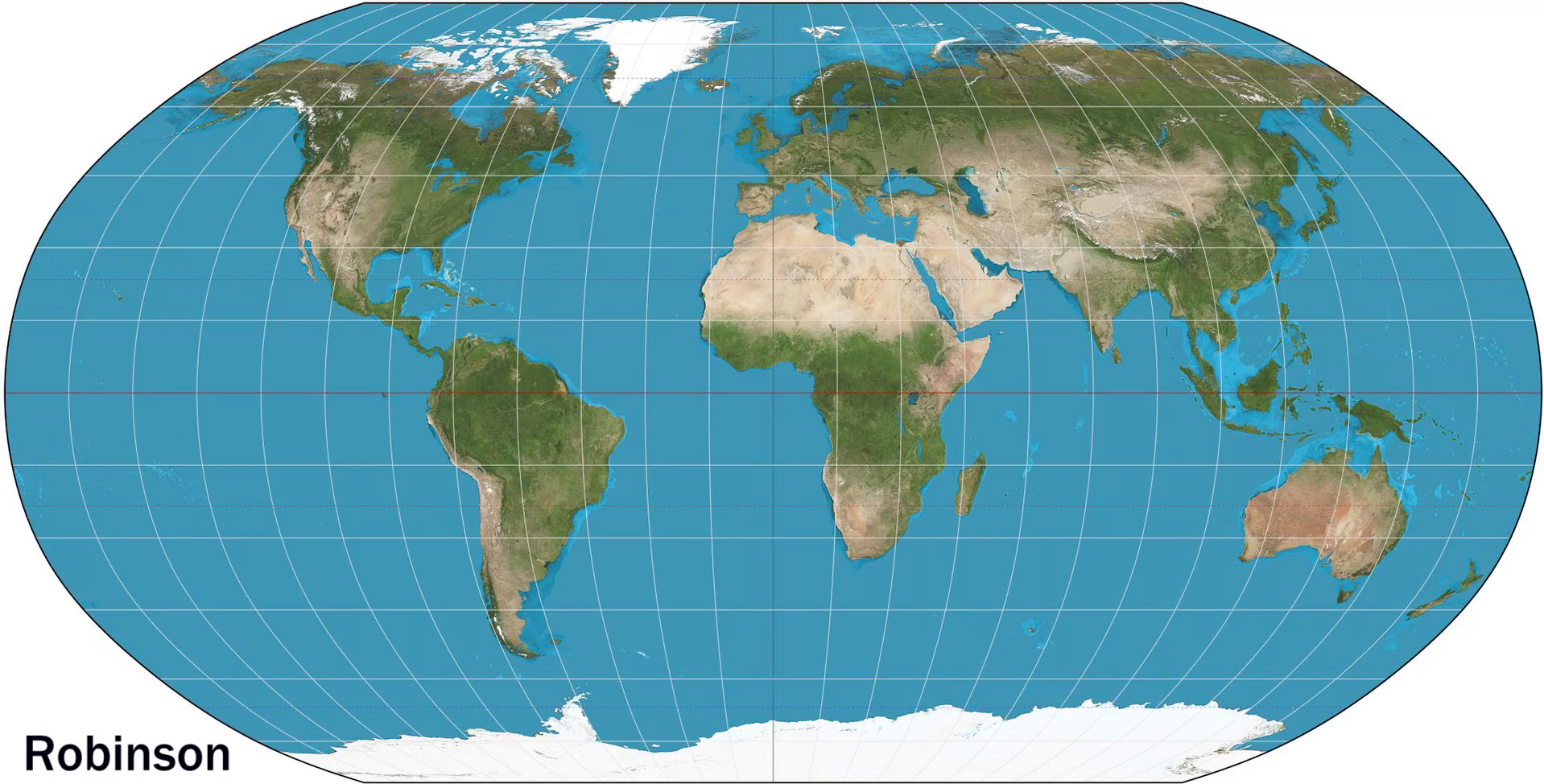

Compromised projections do not preserve any specific dimension, instead opting for a balanced representation that reduces distortion across the board. The Robinson projection is a well-known example, favoured for its aesthetic appeal.

Other Compromised Projections

• Winkle Triple: A popular alternative to the Robinson, adopted by the National Geographic Society.

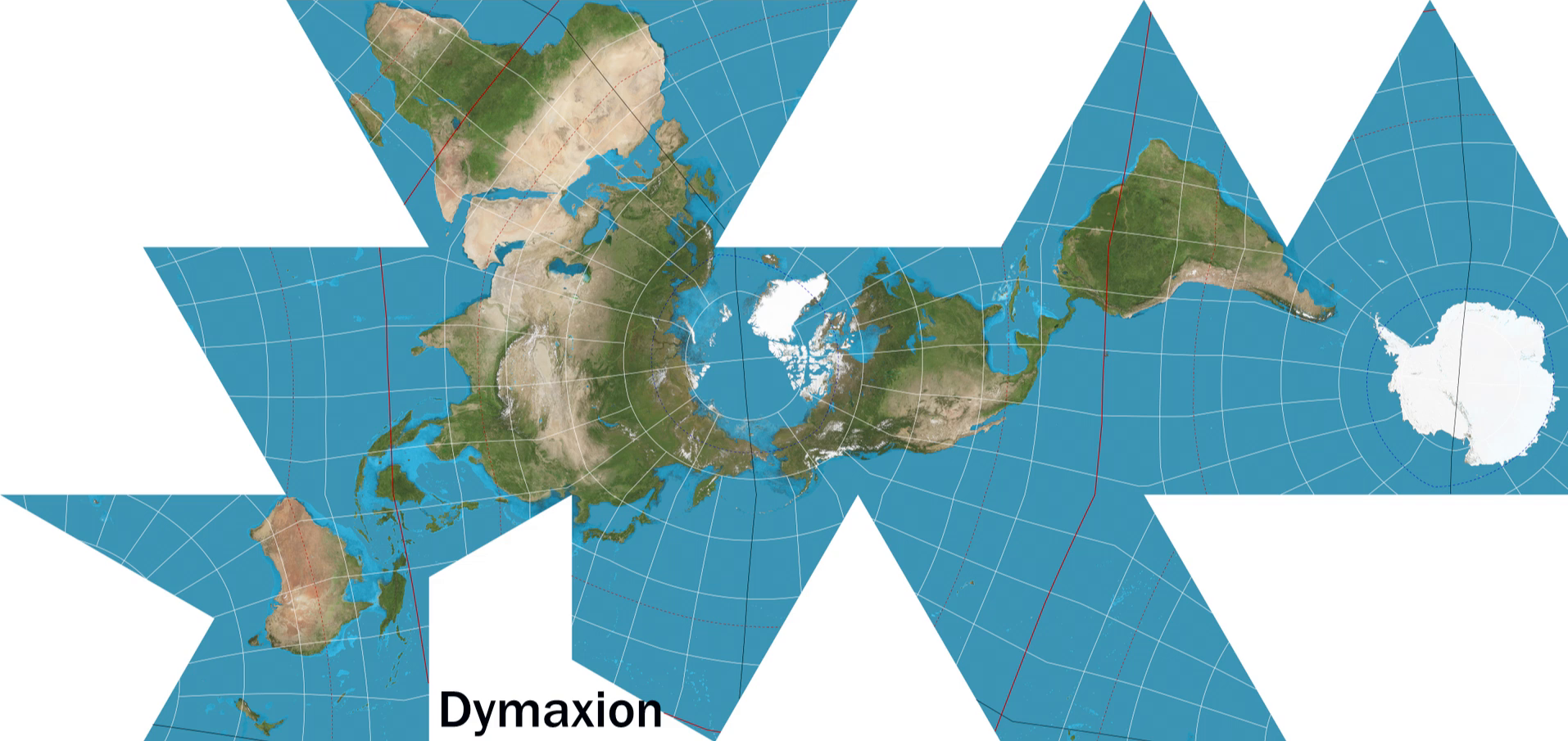

• Buckminster Fuller Dymaxion Map: A unique projection that showcases the globe in a non-traditional format.

Conclusion

As you explore the different types of map projections, it’s essential to understand their specific uses and limitations. Each projection serves a purpose, whether it’s for navigation, area representation, or aesthetic appeal. By grasping the intricacies of these projections, you can make informed decisions about which map best suits your needs.

Composite and Gnomonic Projections

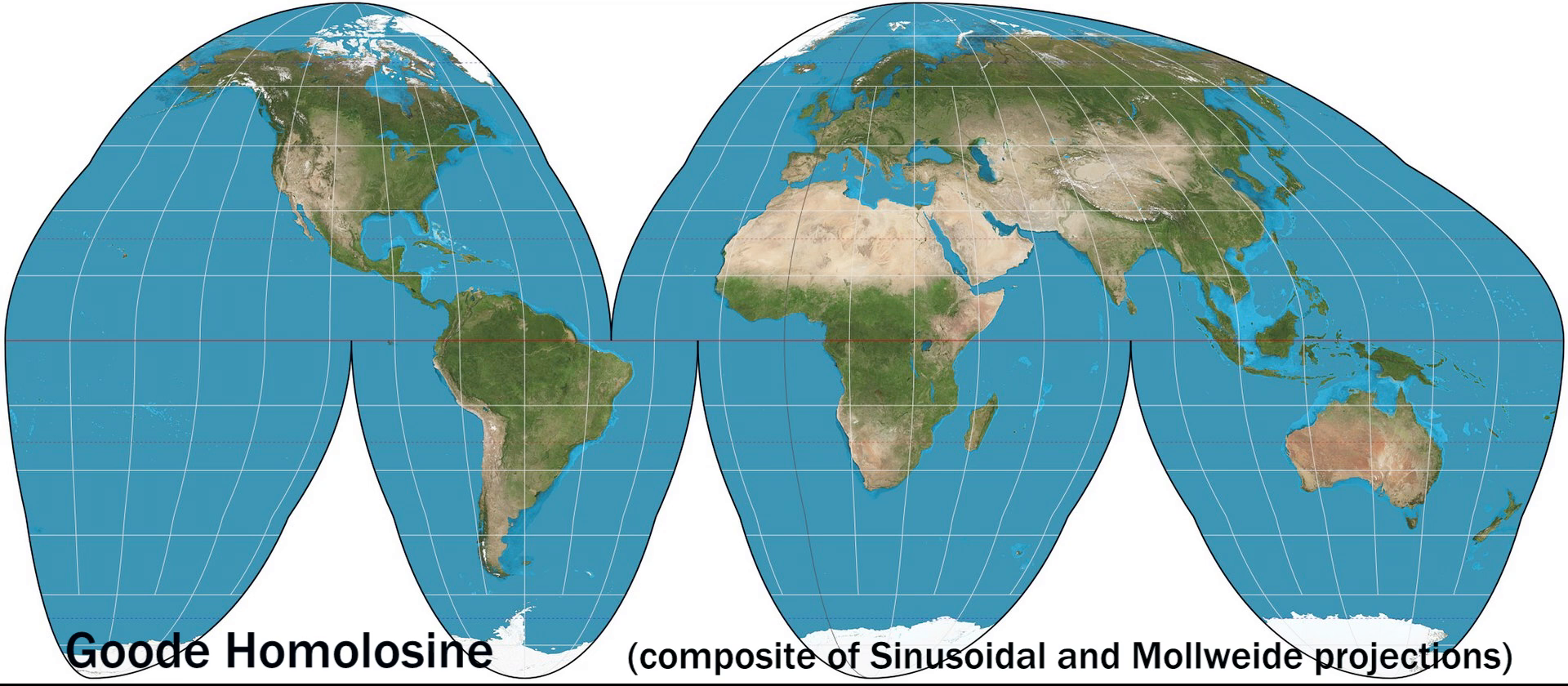

Composite projections combine the features of multiple projections to create a more functional map. The best-known example is the good homologized projection, which presents an interrupted map.

Benefits of Composite Projections

• Reduced distortion in shape, size, and distance.
• Aesthetic considerations, although the interrupted nature may affect usability.

Gnomonic Projections

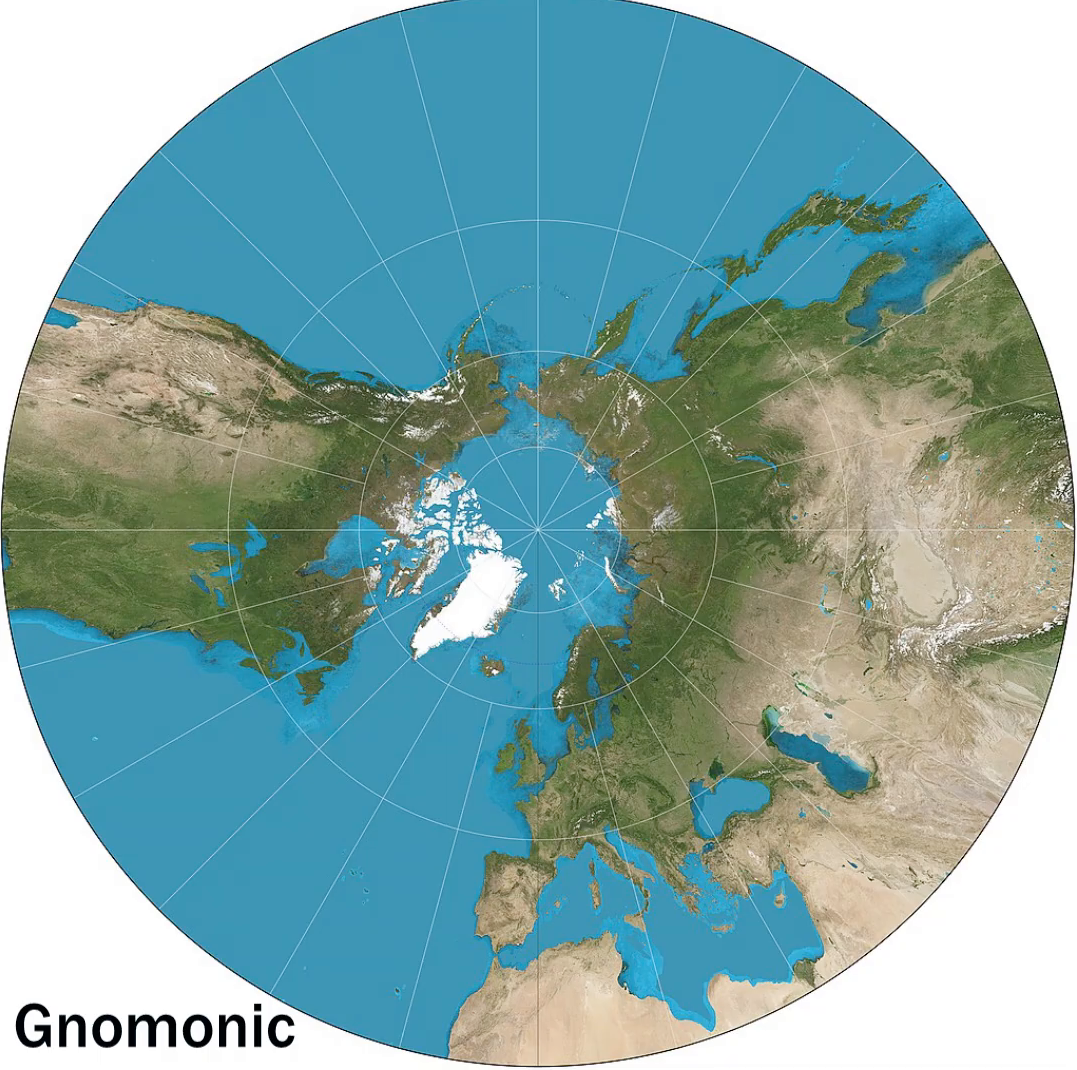

Gnomonic projections are designed to display all great circles as straight lines. This feature allows for the shortest distance between two points to be easily visualized.

Conclusion: Choosing the Right Projection

Understanding the various types of map projections is essential for effective map usage. Each projection serves a specific purpose, whether for navigation, area representation, or visual appeal. The key is to select the right projection based on your specific needs and the characteristics of the area being represented.

As map users, recognizing these differences allows for better interpretation and application of geographic information. Whether you need an accurate representation of areas, distances, or shapes, there is a map projection tailored for your needs.
